This module is part of the original MMBasic library. It is reproduced here with kind permission of Hugh Buckle and Geoff Graham. Be aware it may reference functionality which has changed or is deprecated in the latest versions of MMBasic.¶

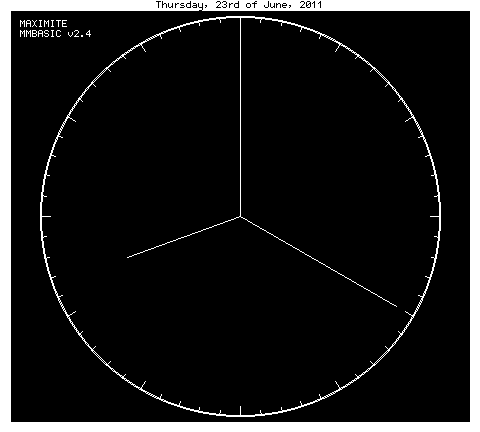

Note: The required CLOCK.BMP is available in the attachments tab (top right).
Original code by Eugene Villar (for the clock) and Ray Thomas (for the day of week).
Modified for Maximite BASIC v2.4 by Bob Devries, June, 2011
http://geoffg.net/maximite.htmlhttp://www.thebackshed.com/forum/forum_topics.asp?FID=16Regards,
Bob Devries
Dalby, QLD, Australia
Original code:
' ANALOG CLOCK
' Case Study Problem B3: Program 1
' ---------------------------------------------------------------------------
' written by Eugene Villar http://seavsoftwares.codedgraphic.com/home_page.html
' ~ This program draws a very simple analog clock.
' modified for Maximite BASIC by Bob Devries
'*** modified by Hugh Buckle in Dec 2011 to request and verify current date and time
Timer = Val(Left$(Time$,2)) * 3600 + Val(Mid$(Time$,4,2)) * 60 + Val(Right$(Time$,2))
'*** Get current date and time
'*** days in each month used in the date/time request subroutine
Data 31,29,31,30,31,30,31,31,30,31,30,31
GoSub L004
' Clock border
Cls
Line(0,0)-(480,432),1,BF:Line(11,12)-(469,421),0,BF
GoSub L001
Locate 20,20:Print"MAXIMITE"
Locate 20,30:Print"MMBASIC v";:GoSub L002 :Print version$;
start=(MM.HRes/2)-((prtlen*6)/2):stop=(MM.HRes/2)+((prtlen*6)/2)-1
For xx=start To stop:For yy=1 To 11: Pixel(xx,yy)=Not(Pixel(xx,yy)): Next yy,xx
Circle(240,216), 200, 1
Circle(240,216),199,1
For i=0 To 59
rads=i*3.14159265/30
If i Mod 5 <> 0 Then
x1=Sin(rads)*195+240
y1=-Cos(rads)*195+216
Else
x1=Sin(rads)*190+240
y1=-Cos(rads)*190+216
EndIf
x2=Sin(rads)*200+240
y2=-Cos(rads)*200+216
Line(x1,y1)-(x2,y2),1
Next i
' Previous hand positions
PHrX = 240: PHrY = 216
PMnX = 240: PMnY = 216
PScX = 240: PScY = 216
' Clock display loop
Do
' Wait for a second to elapse
t$=Time$: Timed = Val(Left$(t$,2)) * 3600 + Val(Mid$(t$,4,2)) * 60 + Val(Right$(t$,2))
Do
Pin(0)=0
Pause 999
Pin(0)=1
Loop Until Int(Timer)/1000 <> Timed
' Calculate the time values
T$=Time$:TimeNow = Val(Left$(T$,2)) * 3600 + Val(Mid$(t$,4,2)) * 60 + Val(Right$(t$,2))
Second = TimeNow Mod 60
Minute = (TimeNow \ 60) Mod 60
Minute = Minute + Second \ 60
Hour = TimeNow / 3600
If Hour >= 12 Then Hour = Hour - 12
' Compute the angles (converted to radians)
HrAng = .523599 * Hour
MnAng = .10472 * Minute
ScAng = .10472 * Second
' Compute the hands' endpoints
HrX = Sin(HrAng) * 120 + 240: HrY = 0 - Cos(HrAng) * 120 + 216
MnX = Sin(MnAng) * 180 + 240: MnY = 0 - Cos(MnAng) * 180 + 216
ScX = Sin(ScAng) * 190 + 240: ScY = 0 - Cos(ScAng) * 190 + 216
' Erase the previous hands
Line(240, 216)-(PHrx, PHry),0
Line(240, 216)-(PMnx, PMny),0
Line(240, 216)-(PScx, PScy),0
' Draw the current hands
Line(240, 216)-(HrX, HrY),1
Line(240, 216)-(MnX, MnY),1
Line(240, 216)-(ScX, ScY),1
' Save the hands' position
PHrX = HrX: PHrY = HrY
PMnX = MnX: PMnY = MnY
PScX = ScX: PScY = ScY
Loop Until Inkey$ = Chr$(27)
End
L001: 'WeekDay.bas Ray Thomas September 2000
Dim TxtDay$(7)
Dim TxtMonth$(12)
Data "Sunday","Monday","Tuesday","Wednesday","Thursday","Friday","Saturday"
Data "January","February","March","April","May","June","July"
Data "August","September","October","November","December"
For Count = 0 To 6
Read TxtDay$(Count)
Next Count
For Count = 0 To 11
Read TxtMonth$(Count)
Next Count
UserDate$ = Date$
'*** Split out the day, month and year ***
Day = Val(Left$(UserDate$, 2))
Month = Val(Mid$(UserDate$, 4, 2))
Year = Val(Right$(UserDate$, 4))
OldYear = Year
OldMonth=Month
'*** start the print out
Suffix$ = "th"
If Day Mod 10 = 1 Then Suffix$ = "st"
If Day Mod 10 = 2 Then Suffix$ = "nd"
If Day Mod 10 = 3 Then Suffix$ = "rd"
If Day > 10 And Day < 14 Then Suffix$ = "th"
'*** For any date in Jan or Feb add 12 to the month and
'*** subtract 1 from the year
If Month < 3 Then
Month = Month + 12
Year = Year - 1
EndIf
'*** Add 1 to the month and multiply by 2.61
'*** Drop the fraction (not round) afterwards
Month = Month + 1
Month = Fix(Month * 2.61)
'*** Add Day, Month and the last two digits of the year
NewYear$ = Str$(Year)
Year = Val(Right$(NewYear$, 2))
DMY = Day + Month + Year
Century = Val(Left$(NewYear$, 2))
'*** Add a quarter of the last two digits of the year
'*** (truncated not rounded)
Year = Fix(Year / 4)
DMY = DMY + Year
'*** Add the following factors for the year
If Century = 18 Then Century = 2
If Century = 19 Then Century = 0
If Century = 20 Then Century = 6
If Century = 21 Then Century = 4
DMY = DMY + Century
'*** The day of the week is the modulus of DMY divided by 7
DMY = DMY Mod 7
prt$=TxtDay$(DMY)+", "+Str$(Day)+Suffix$+" of "+TxtMonth$(OldMonth-1)+", "+Str$(OldYear)
prtlen=Len(prt$)
Locate (480-(prtlen*6))/2,1:Print prt$
Return
L002: ver$=Str$(MM.Ver)
L003: verpos=Instr(ver$,".")
If verpos = 0 Then ver$=ver$+".0":GoTo L003
ver1$=Left$(ver$,verpos-1)
ver2$=Mid$(ver$,verpos+1,2)
ver3$=Right$(ver$,Len(ver$)-verpos)
ver4$=Str$(Val(Left$(ver3$,2)))
If Len(ver3$)>2 Then ver5=Val(Right$(ver3$,2)):ver5$=Chr$(ver5+64)
version$=ver1$+"."+ver4$+ver5$
Return
'***
L004: '*** Subroutine to request and verify the current date and time - Hugh Buckle 12/2011
Cls
'*** days in each month
Dim DaysInMth(12)
For i = 1 To 12
Read DaysInMth(i)
Next
'***
L005: '*** Ask if date and time to be entered
Print "System date & time are " Date$ " " Time$
Input "Do you wish to change them (y/n)"; Reply$
If LCase$(Reply$) = "n" Then
Return
ElseIf LCase$(Reply$) <> "y" Then
Print " Sorry I didn't understand your reply. Please answer Y or N"
GoTo L005
EndIf
'***
L006: '*** ask for current date
Input "Enter date dd-mm-yyyy"; reply$
i = Instr(1,reply$,"-")
If i > 1 Then
day = Val(Left$(reply$,i-1))
Else
Print "Please use format dd-mm-yy."
Print
GoTo L006
EndIf
j = Instr(i+1,reply$,"-")
If j > i + 1 Then
month = Val(Mid$(reply$,i+1,j-i-1))
year = Val(Right$(reply$, Len(reply$) - j))
EndIf
If Month < 1 Or Month > 12 Then
Print "Month error. Please use format dd-mm-yyyy"
Print
GoTo L006
EndIf
If day < 1 Or day > DaysInMth(Month) Then
Print "Day error. Please use format dd-mm-yyyy"
Print
GoTo L006
EndIf
'*** leap years are evenly divisible by 4
'*** however those evenly divisible by 100 are not unless they are evenly divisible by 400
If month = 2 And day > 28 Then
If year Mod 4 <> 0 Or year/100 Mod 4 <> 0 Then
Print year " is not a leap year."
Print
GoTo L006
EndIf
EndIf
Date$ = reply$
'***
L007: '*** Ask for current time
Input "Enter time hh:mm[:ss] "; reply$
i = Instr(1,reply$,":")
If i > 1 Then
hour = Val(Left$(reply$,i-1))
Else
Print "Please use format hh:mm[:ss]"
Print
GoTo L007
EndIf
j = Instr(i+1,reply$,":")
'*** if no second colon then seconds have been omitted
If j = 0 Then
minute = Val(Right$(Reply$, Len(reply$) - i))
second = 0
Else
minute = Val(Mid$(reply$,i+1,j-i-1))
second = Val(Right$(reply$, Len(reply$) - j))
EndIf
If hour < 0 Or Hour > 24 Or minute < 0 Or minute > 59 Or second < 0 Or second > 59 Then
Print "Time error. Please use format hh:mm[:ss] where seconds are optional."
Print
GoTo L007
EndIf
Time$ = reply$
Return
'*** End HB mod 12/2011
Modified code:
' ANALOG CLOCK
' Case Study Problem B3: Program 1
' ---------------------------------------------------------------------------
' written by Eugene Villar http://seavsoftwares.codedgraphic.com/home_page.html
' ~ This program draws a very simple analog clock.
' modified for Maximite BASIC by Bob Devries
' modified for colour by Geoff Graham
If MM.Device$ <> "Colour Maximite" Then
Print "This program requires the Colour Maximite"
End
EndIf
Timer = Val(Left$(Time$,2)) * 3600 + Val(Mid$(Time$,4,2)) * 60 + Val(Right$(Time$,2))
' Clock border
Mode 3
Cls
Line(0,0)-(480,432),Cyan,BF:Line(11,12)-(469,421),0,BF
GoSub L001
Colour Green
Locate 20,20:Print "MAXIMITE"
Locate 20,30:Print "MMBASIC v";:GoSub L002 :Print version$;
Colour White
Circle(240,216), 200, Yellow
Circle(240,216),199, Yellow
For i=0 To 59
rads=i*3.14159265/30
If i Mod 5 <> 0 Then
x1=Sin(rads)*195+240
y1=-Cos(rads)*195+216
Else
x1=Sin(rads)*190+240
y1=-Cos(rads)*190+216
EndIf
x2=Sin(rads)*200+240
y2=-Cos(rads)*200+216
Line(x1,y1)-(x2,y2),Yellow
Next i
' Previous hand positions
PHrX = 240: PHrY = 216
PMnX = 240: PMnY = 216
PScX = 240: PScY = 216
' Clock display loop
Do
' Wait for a second to elapse
t$=Time$: Timed = Val(Left$(t$,2)) * 3600 + Val(Mid$(t$,4,2)) * 60 + Val(Right$(t$,2))
Do
Pin(0)=0
Pause 999
Pin(0)=1
Loop Until Int(Timer)/1000 <> Timed
' Calculate the time values
T$=Time$:TimeNow = Val(Left$(T$,2)) * 3600 + Val(Mid$(t$,4,2)) * 60 + Val(Right$(t$,2))
Second = TimeNow Mod 60
Minute = (TimeNow \ 60) Mod 60
Minute = Minute + Second \ 60
Hour = TimeNow / 3600
If Hour >= 12 Then Hour = Hour - 12
' Compute the angles (converted to radians)
HrAng = .523599 * (Hour + Minute/60)
MnAng = .10472 * (Minute + Second/60)
ScAng = .10472 * Second
' Compute the hands' endpoints
HrX = Sin(HrAng) * 120 + 240: HrY = 0 - Cos(HrAng) * 120 + 216
MnX = Sin(MnAng) * 180 + 240: MnY = 0 - Cos(MnAng) * 180 + 216
ScX = Sin(ScAng) * 190 + 240: ScY = 0 - Cos(ScAng) * 190 + 216
' make the tick sound
Sound 3000, 5, 1
' Draw the current hands
' we erase then immediately redraw to avoid flicker
' then one final redraw incase the hands overlapped
Line(240, 216)-(PScx, PScy),0 ' Erase the previous second hand
Line(240, 216)-(ScX, ScY),Red ' Draw the second hand
Line(240, 216)-(PMnx, PMny),0 ' Erase the previous minute hand
Line(240, 216)-(MnX, MnY),Purple ' Draw the minute hand
Line(240, 216)-(PHrx, PHry),0 ' Erase the previous hour hand
Line(240, 216)-(HrX, HrY),Purple ' Draw the hour hand
' Save the hands' position
PHrX = HrX: PHrY = HrY
PMnX = MnX: PMnY = MnY
PScX = ScX: PScY = ScY
Loop Until Inkey$ = Chr$(27)
End
L001: 'WeekDay.bas Ray Thomas September 2000
Dim TxtDay$(7)
Dim TxtMonth$(12)
Data "Sunday","Monday","Tuesday","Wednesday","Thursday","Friday","Saturday"
Data "January","February","March","April","May","June","July"
Data "August","September","October","November","December"
For Count = 0 To 6
Read TxtDay$(Count)
Next Count
For Count = 0 To 11
Read TxtMonth$(Count)
Next Count
UserDate$ = Date$
'*** Split out the day, month and year ***
Day = Val(Left$(UserDate$, 2))
Month = Val(Mid$(UserDate$, 4, 2))
Year = Val(Right$(UserDate$, 4))
OldYear = Year
OldMonth=Month
'*** start the print out
Suffix$ = "th"
If Day Mod 10 = 1 Then Suffix$ = "st"
If Day Mod 10 = 2 Then Suffix$ = "nd"
If Day Mod 10 = 3 Then Suffix$ = "rd"
If Day > 10 And Day < 14 Then Suffix$ = "th"
'*** For any date in Jan or Feb add 12 to the month and
'*** subtract 1 from the year
If Month < 3 Then
Month = Month + 12
Year = Year - 1
EndIf
'*** Add 1 to the month and multiply by 2.61
'*** Drop the fraction (not round) afterwards
Month = Month + 1
Month = Fix(Month * 2.61)
'*** Add Day, Month and the last two digits of the year
NewYear$ = Str$(Year)
Year = Val(Right$(NewYear$, 2))
DMY = Day + Month + Year
Century = Val(Left$(NewYear$, 2))
'*** Add a quarter of the last two digits of the year
'*** (truncated not rounded)
Year = Fix(Year / 4)
DMY = DMY + Year
'*** Add the following factors for the year
If Century = 18 Then Century = 2
If Century = 19 Then Century = 0
If Century = 20 Then Century = 6
If Century = 21 Then Century = 4
DMY = DMY + Century
'*** The day of the week is the modulus of DMY divided by 7
DMY = DMY Mod 7
prt$=TxtDay$(DMY)+", "+Str$(Day)+Suffix$+" of "+TxtMonth$(OldMonth-1)+", "+Str$(OldYear)
prtlen=Len(prt$)
Locate (480-(prtlen*6))/2,0:Print CLR$(Black, Cyan) prt$
Return
L002: ver$=Str$(MM.Ver)
L003: verpos=Instr(ver$,".")
If verpos = 0 Then ver$=ver$+".0":GoTo L003
ver1$=Left$(ver$,verpos-1)
ver2$=Mid$(ver$,verpos+1,2)
ver3$=Right$(ver$,Len(ver$)-verpos)
ver4$=Str$(Val(Left$(ver3$,2)))
If Len(ver3$)>2 Then ver5=Val(Right$(ver3$,2)):ver5$=Chr$(ver5+64)
version$=ver1$+"."+ver4$+ver5$
Return
